Tactical Jammer

PTJ800W

The PTJ800W its a portable jamming system, designed for the protection of VIP’s and groups of people from radio controlled improvised explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks.

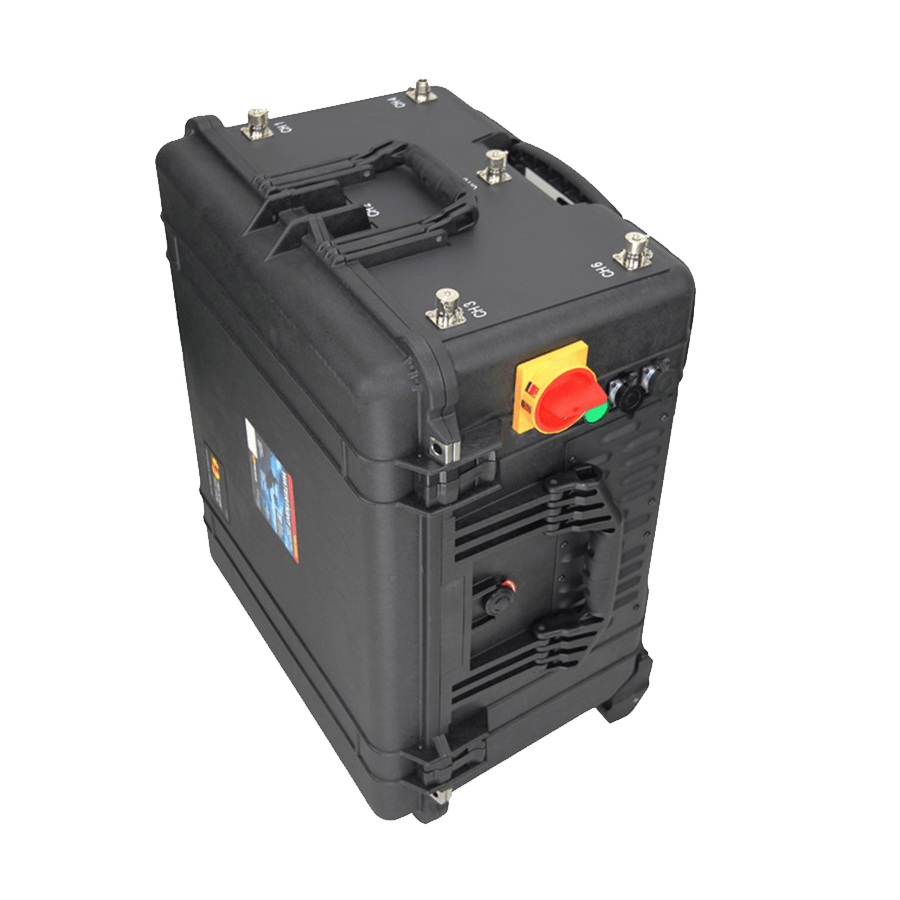

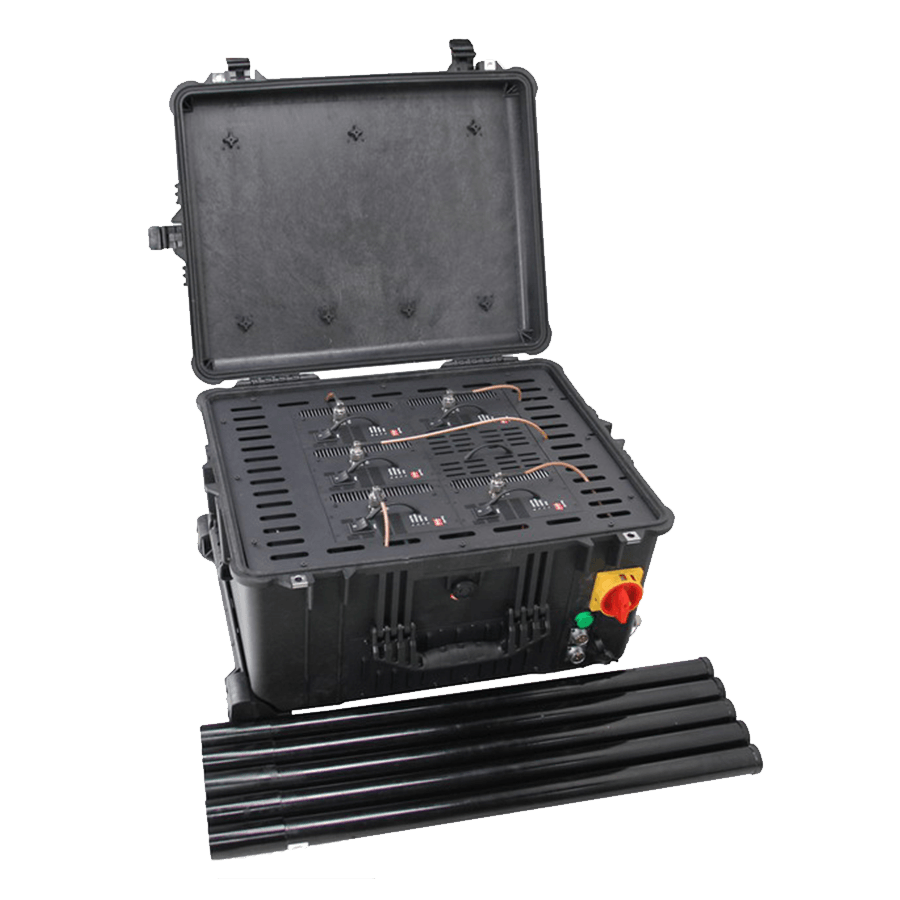

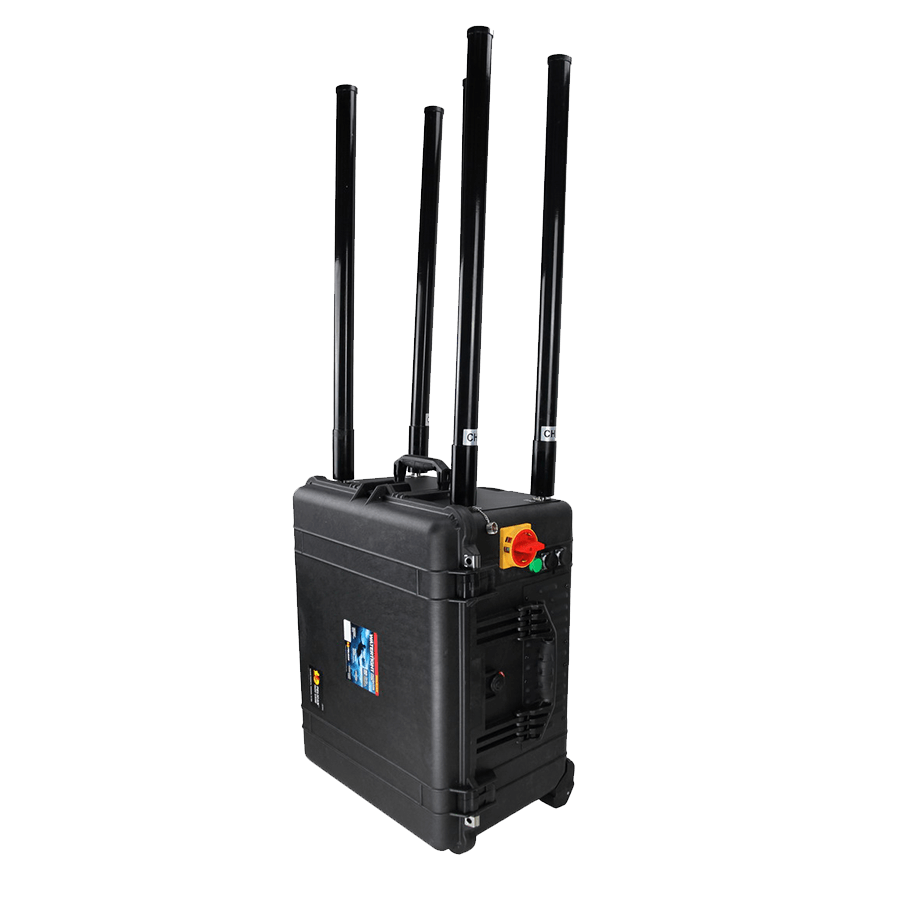

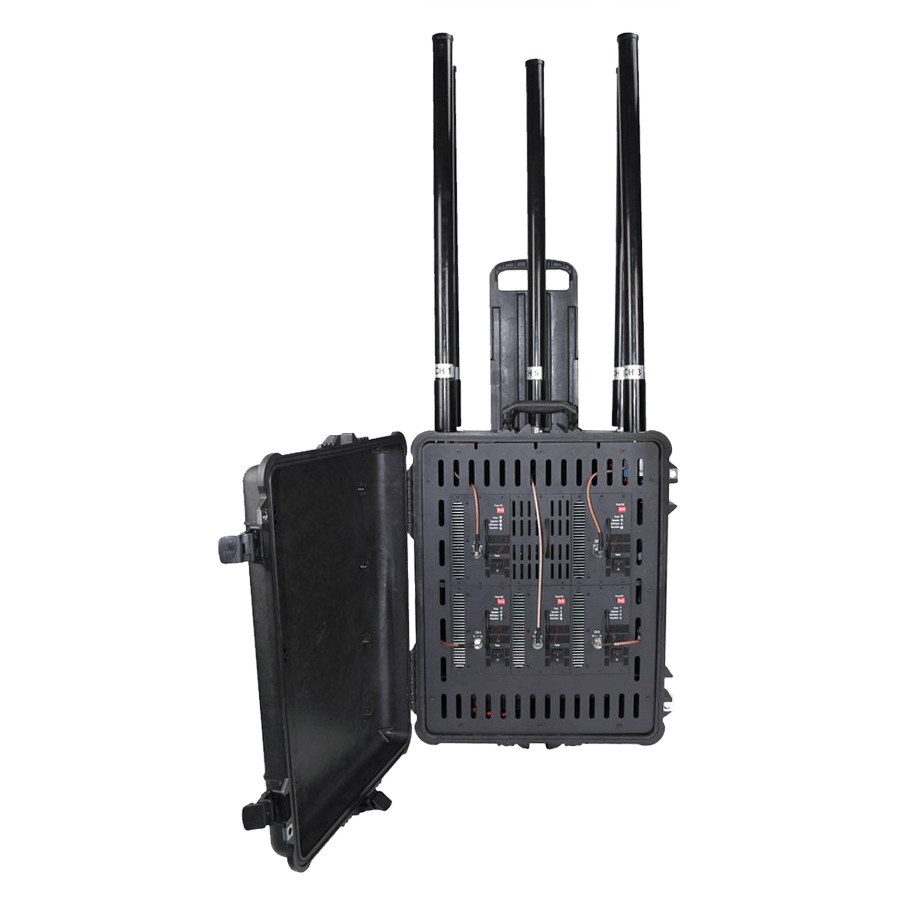

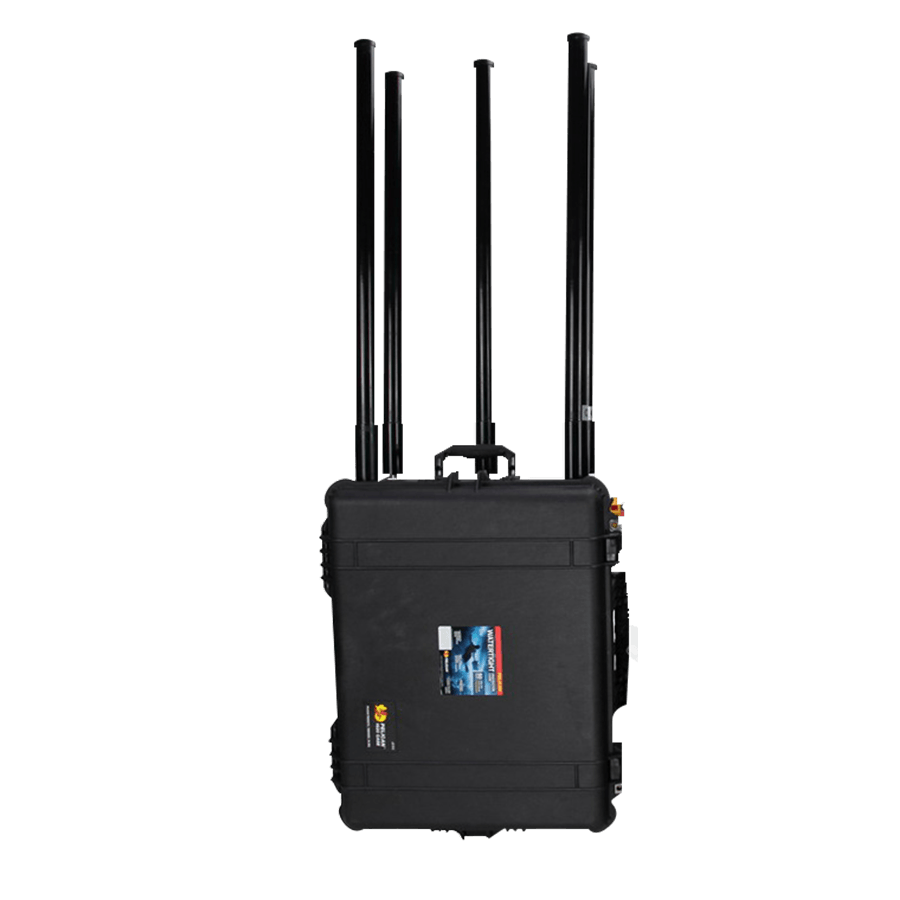

The PTJ800W Tactical Jammer is a cell phone jammer of the highest quality, camouflaged in a Pelican briefcase, to easily transport to all kinds of confidential meetings avoiding interruptions or any information leak that compromises the security of a personality.

The PTJ800W Tactical Jammer maintains a wide perimeter free of communications avoiding interruptions or any leak of information that compromises the security of a personality.

The Jammer transmits RF interference (radio frequency) creating a Protected Zone around the object that prevents the activation of remote controlled bombs by RF with a security radius and sufficient interference, thanks to its power that is 800w.

In order to save lives and prevent serious injuries the Portable Tactical Jammer has also been deployed to protect forces in the field, dignitaries and border checkpoints, roadblocks, embassies, police offices, government etc.

The PTJ800W transmits RF interference and creates a «Radio Frequency Protected Zone» around the object that prevents remote controlled bomb activation by various RF means in its vicinity with a sufficient jamming safety radius, in order to save lives and prevent serious injuries. The PTJ800W are also deployed to guard forces in the field, Dignitaries and VIP’s, checkpoint and border rossings, roadblocks, Embassies, Police and Government offices etc. Briefcase Jammer are available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements.

Specifications

Posible Configuration)

Band 1

CDMA 900: 850-895MHz: 100W

Band 2

PCS CDMA 1900: 1920-1990MHz 100W

Band 3

3G UMTS : 2100-2170MHz: 100W

Band 4

4G LTE & WiMax : 2500-2700MHz: 100W

Band 5

WiFi & Bluetooth : 2400-2500MHz: 100W

Band 6

4G Low LTE : 700-800MHz: 100W

Band 7

VHF: 130-180MHz: 100W

Band 8

UHF: 400-480MHz: 100W

(Option) 5.0-5.5GHz:15W, 5.5-6.0GHz:15W WiFi 11.a

Civil Remote Contorl Toys: 200-300MHz:100W, 300 -400MHz:100W: GPS L1 L2 L3 L4 L5: 100W

800W

Power supply:

AC adapter (AC220V-DC27V or 24V/ 45 Amp) or External Battery

Jamming  Range:

50 – 300 meters@-75dBm

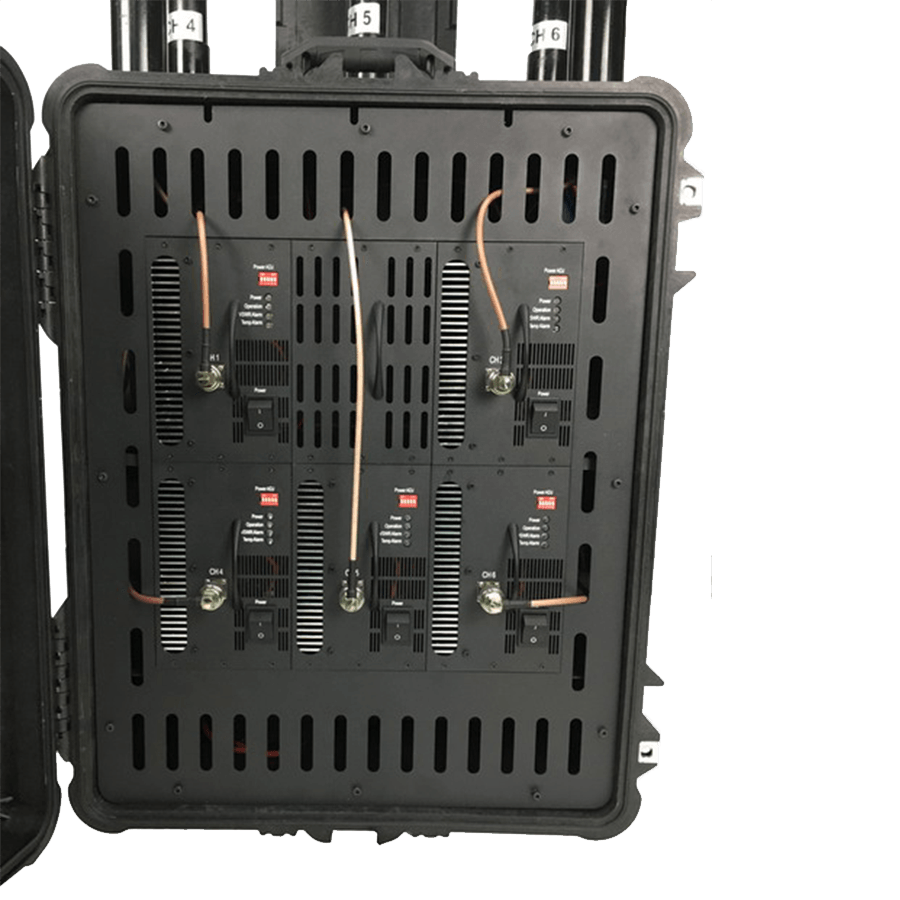

Stand-alone modular design and individual power control.

Adjustable Output Power each Band/Channel

VSWR over protection for each modular.

Working status indicator for each band modular.

Cover network standards: AMPS,N-AMPS, DCS,NMT,TACS,GSM,CDMA,TDMA,IDEN,UMTS

450MHz/VHF/UHF/WiFi/GPS/4G WiMax, VHF, UHF

Designed to cut off down-link only, Therefore it doesn’t have Interference to base station and repeater.

Dimension:626 mm(L)×49.2mm(W)× 350mm(H)

Weight:45 Kg (approximately) just main unit not included antenna & all accessories

Operating temperature:-20℃~ +60℃

Humidity: 5% ~ 90%

Antennas Spec

850-960Mhz : Omni

5dBi, 650mm, 0.8Kg



1500-1600Mhz : Omni

5dBi, 650mm, 0.8Kg



1805-1990Mhz : Omni

5dBi, 650mm, 0.8Kg



2000-2200Mhz : Omni

6dBi, 650mm, 0.8Kg



2400-2500Mhz : Omni

7dBi, 650mm, 0.8Kg



2600-2650Mhz : Omni

7dBi, 650mm, 0.8Kg



130-180/400-500MHz: Omni

2-4 dBi, 750mm, 0.8Kg

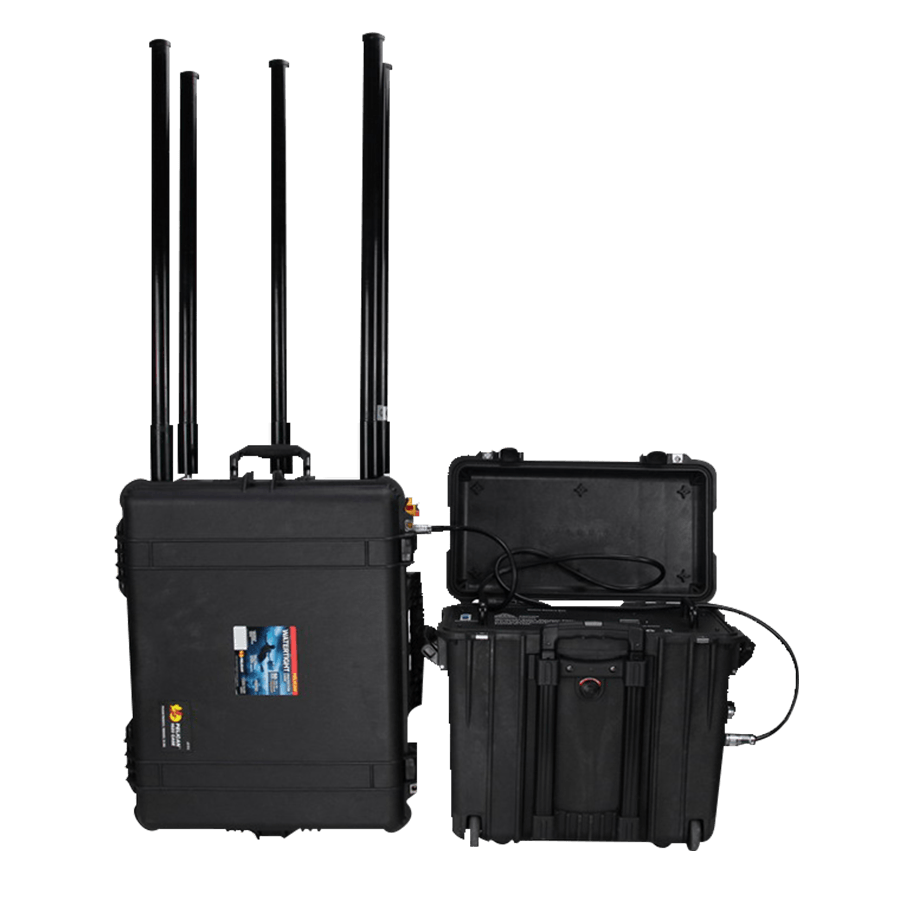

External Battery

B-50AH  27V/50AH LiFePo4 Battery



Pelican Case 1440, 35kg Weight



Work 1-2 hours

Warranty:

1 year
