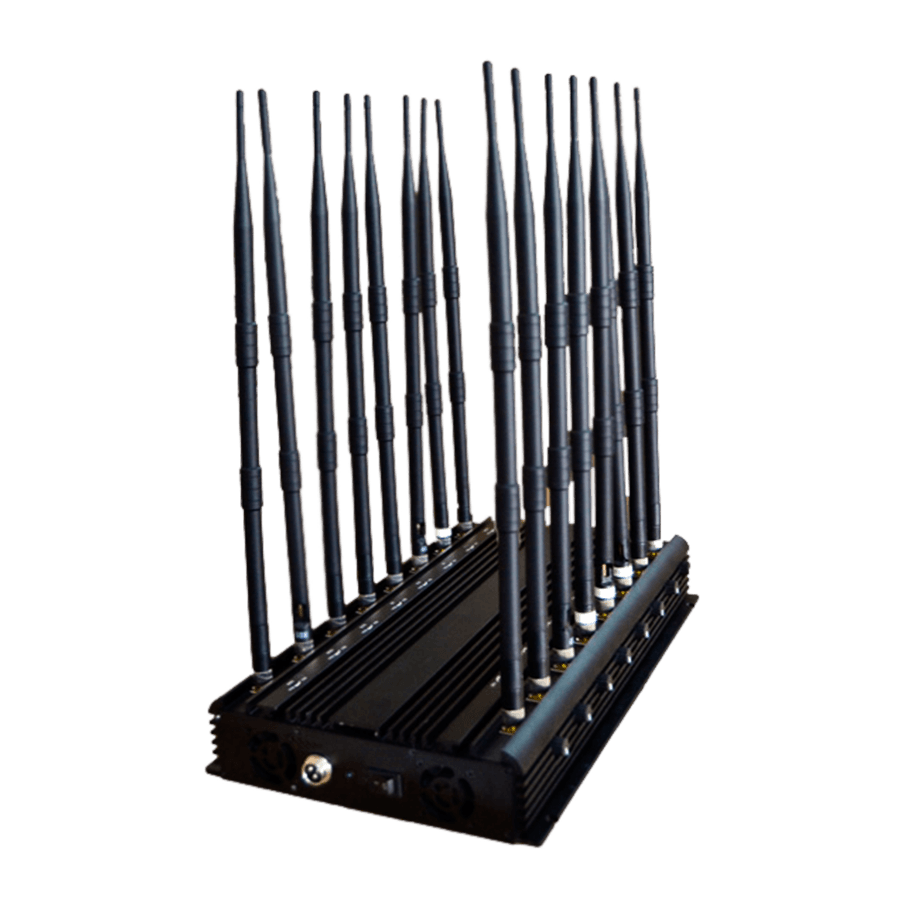

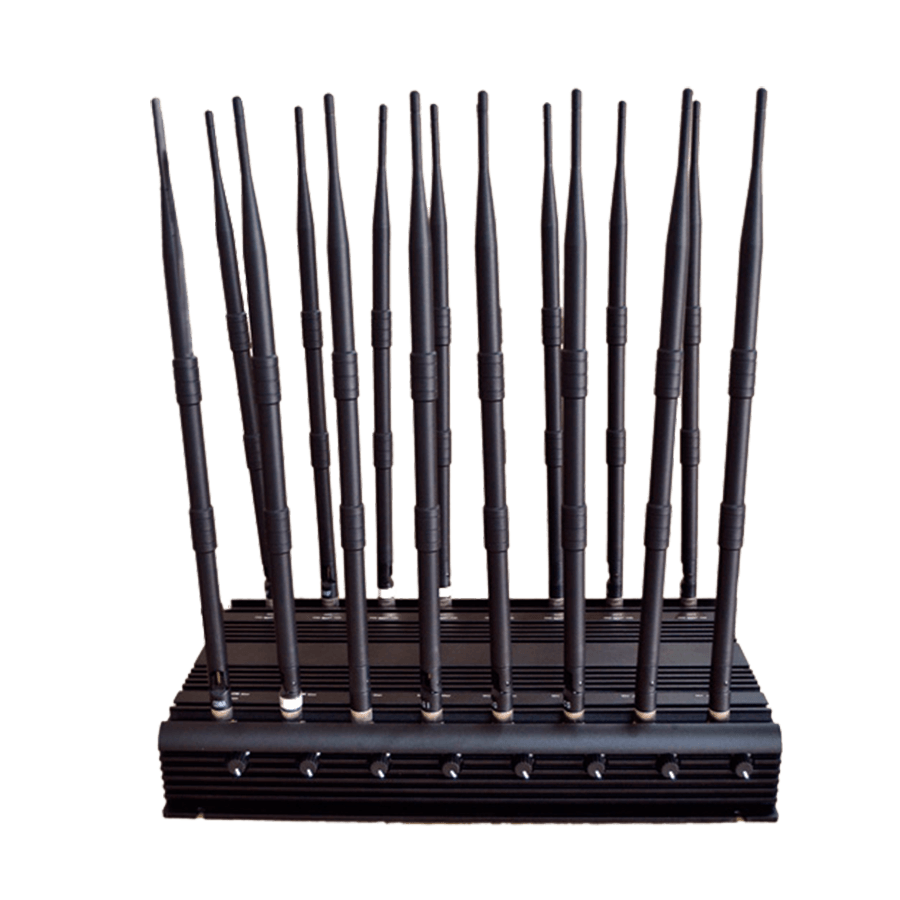

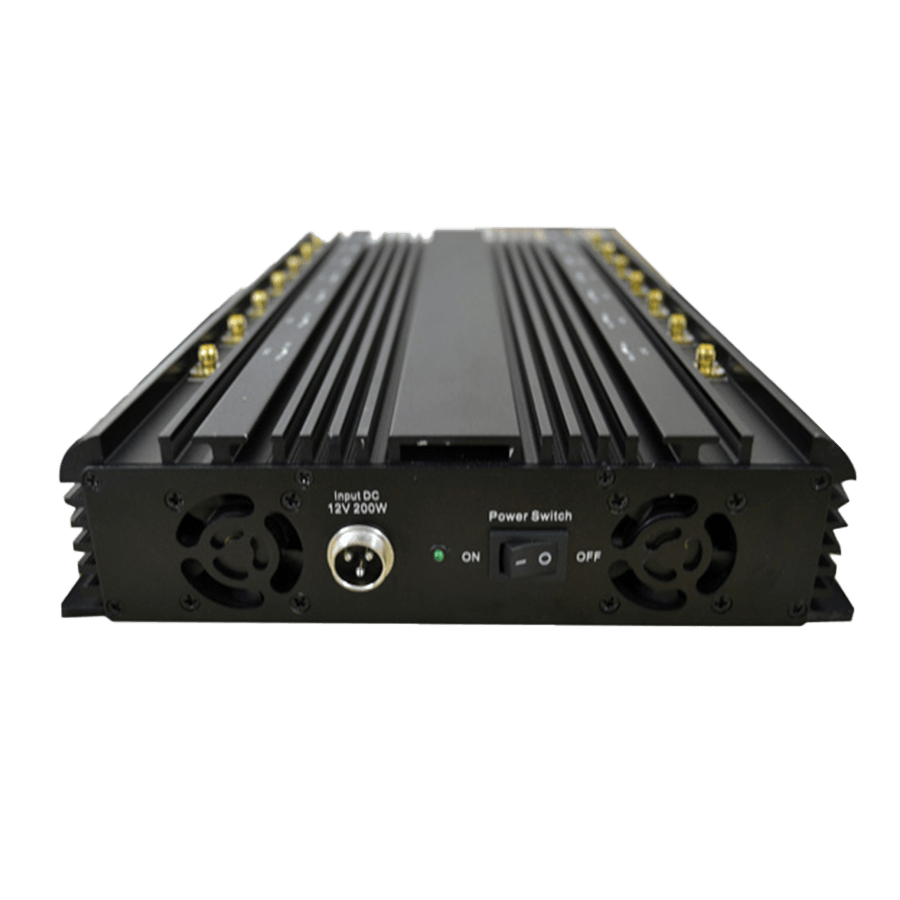

Indoor Jammer
FJD32W
The FJD32W is designed to block all wireless networks including all cellular bands Lojack 173Mhz .433Mhz, 315Mhz GPS, Wi-Fi, VHF, UHF, iDen, TDMA, CDMA, GSM, UMTS, DCS , PHS, PCS, 3G, 4Glte, 4G Wimax, 5G Ready, AMPS, N-AMPS, NMT, TAC. Phones or other electronic communication equipment near the FJD32W will not be able to receive signals, and if it is a mobile phone, it will not be able to make outgoing calls.
Interference radius (2-10) meters – 75dBm still depends on the strength of the signal in a given area. The shielding radius of VHF/UHF signal should be smaller than cell phone signal. FJD32W series for appropriate commercial or institutional applications.
Applications * Cinemas, Hospitals, Worship Places, Churches*Universities, Schools, Classrooms, Libraries * Police and Military, Government * Inside Prisons. Prisons * Homeland Security * Corrections Centers * Petrochemical Industries * Sports Venues and Theaters * VIP Fleet Protection * Bomb Prevention / Disposal.
Specifications
Posible Configuration | |
Band 1 | 850-895MHz: 3.0W CDMA 850 |
Band 2 | 1800-2000MHz: 3.0W DCS, PCS |
Band 3 | 2100-2170MHz: 3.0W 3G, UMTS |
Band 4 | 2300-2500MHz: 3.0W 4G LTE + WiFi 11.b & g |
Band 5 | 2500-2700MHz:3.0W 4G WiMAX Sprint |
Band 6 | 700-800MHz: 3.0W 4G LTE |
Band 7 | 5G 617-652MHz 3.0W 5G |
Band 8 | 1570-1620Mhz: 3W GPS L1 + Glonass L1 |
Band 9 | 173MHz: 3W Lojack |
Band 10 | 1170-1280Mhz: 3W GPS L1 + L5 + Gloanss L2 |
Band 11 | 1370-1390Mhz: 3W GPS L3 + L4 |
Band 12 | 5.1-5.9GHz 2.0W 5GHz 11.a |
| Total: 34W |
Option: Remote/Alarm Control 315MHz, 433MHz, 868MHz, GPS L2 L3 L4 L5,, LoJack 164-173MHz, SAT Satellite Phones 1520-1670MHz All Frequency can mix very Flexible, Each module/Band is independent, LED Each Band | |
Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) | |
Power supply: | AC100-240V or 12V Car Charger (300mm Long) |
Jamming Range | 5~30 meters (-75dBm@Omnidirectional antennas) |
Weight | 6.5Kg |
Dimension: | 330*238*60mm |
Working time: | Without the time limit, May continue to work, |
Antenna | 380mm Long |
