Drone Jammer
DJA09W (3 Bands)

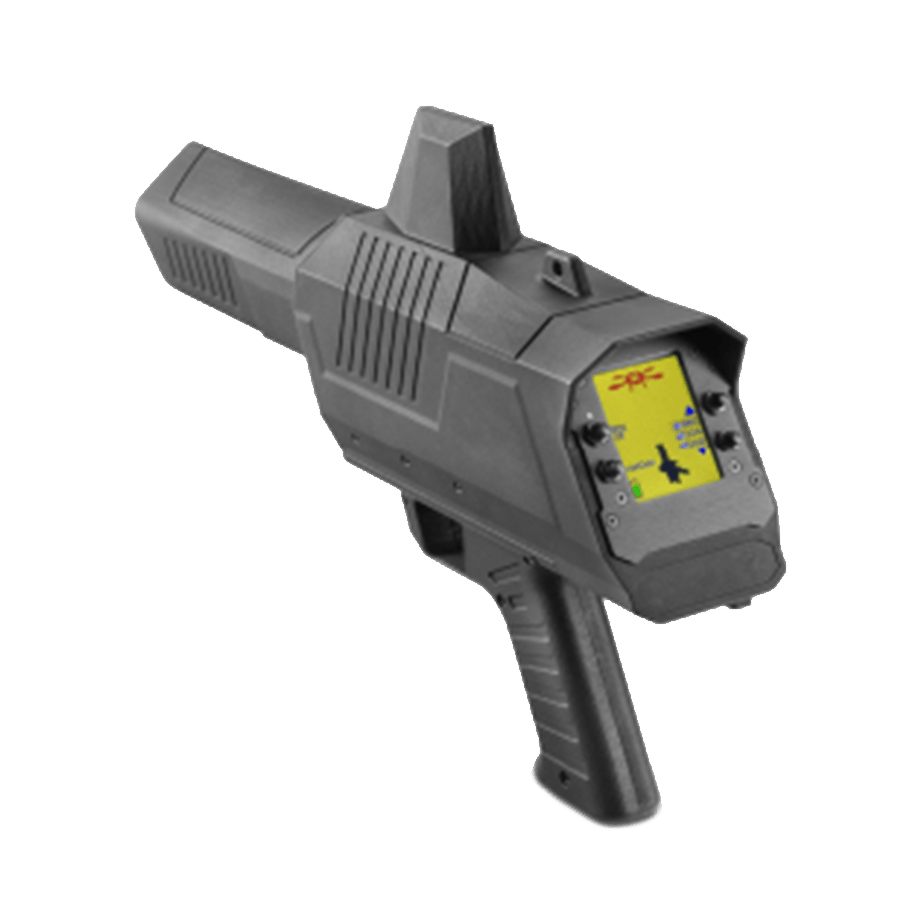

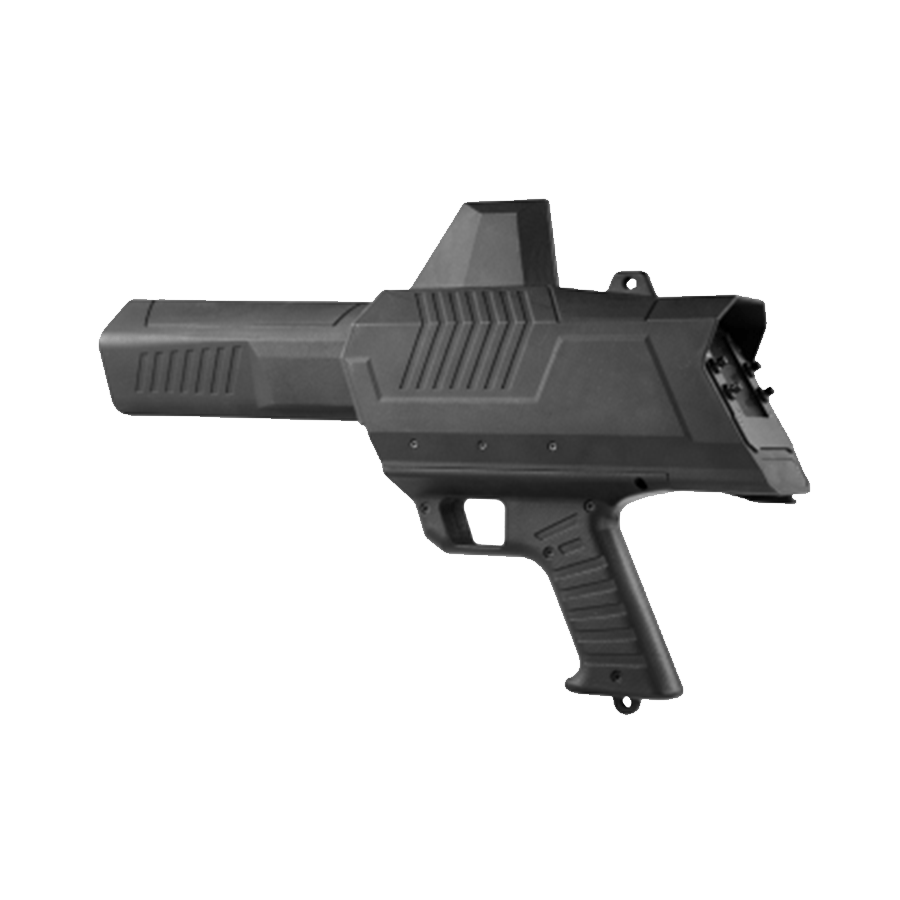

The DJA09W is a handheld countermeasure jammer which protects against drone intrusion. Lightweight and easy to use.
The system has been developed to protect designated areas of drone intrusions that use the latest technologies interference to provide the best compromise between performance and price. Small and portable, it includes three bands, capable of jamming the most common links between the drone, the operator and GNSS, preventing drones from reaching their designated target. Equipped with a smart display, the DJA09W can receive information about the position of the drone through a external detection system (not included).
MAIN FEATURES:
• 3 Bands of 3W
• Easy to use
• Fast answer
• Compact and lightweight
Specifications
| General information: Jamming frequencies and RF Power Output | |
| Band 1: | GNSS L1 3W+/-1.5dB |
| Band 2: | Wi-Fi ISM 3W+/-1.5dB |
| Band 3: | Wi-Fi ISM 1.5W+/-1.5dB |
| External power supply: | brentronics battery model BT-70716BV (DJA09W-plus) |
| Internal power supply: | Li-Po commercial battery 1.3 Ah 3S 11.1V |
| Battery life: | Continuous Jamming = Approx. 30 minutes. Stand By Mode = Approx. 48 hours |
| Temperature operating range: | 0°C + 50°C Splash Proof |
| Jamming Technology: | Direct Modulation over Digital Direct Synthesized Signal |
| Antennas: | 3 directional antennas |
| Effective UAV blocking Range: | Approx. 500 m, where 100 m is the distance between the remote control and the drone itself [ratio 5:1 (distance UAV/WILSON / distance UAV-Remote control)] |
| Display: | ser-friendly display and push buttons for band disable/enable, power battery status, alarms and (optional) threat approach indicator integrated with external detection systems |
| Dimensions and weights | |
| Dimension | Approx. 390 x 252 x 78 mm (Antennas Included) |
| Weight: | Approx 1.5 Kg (Battery Included) |
